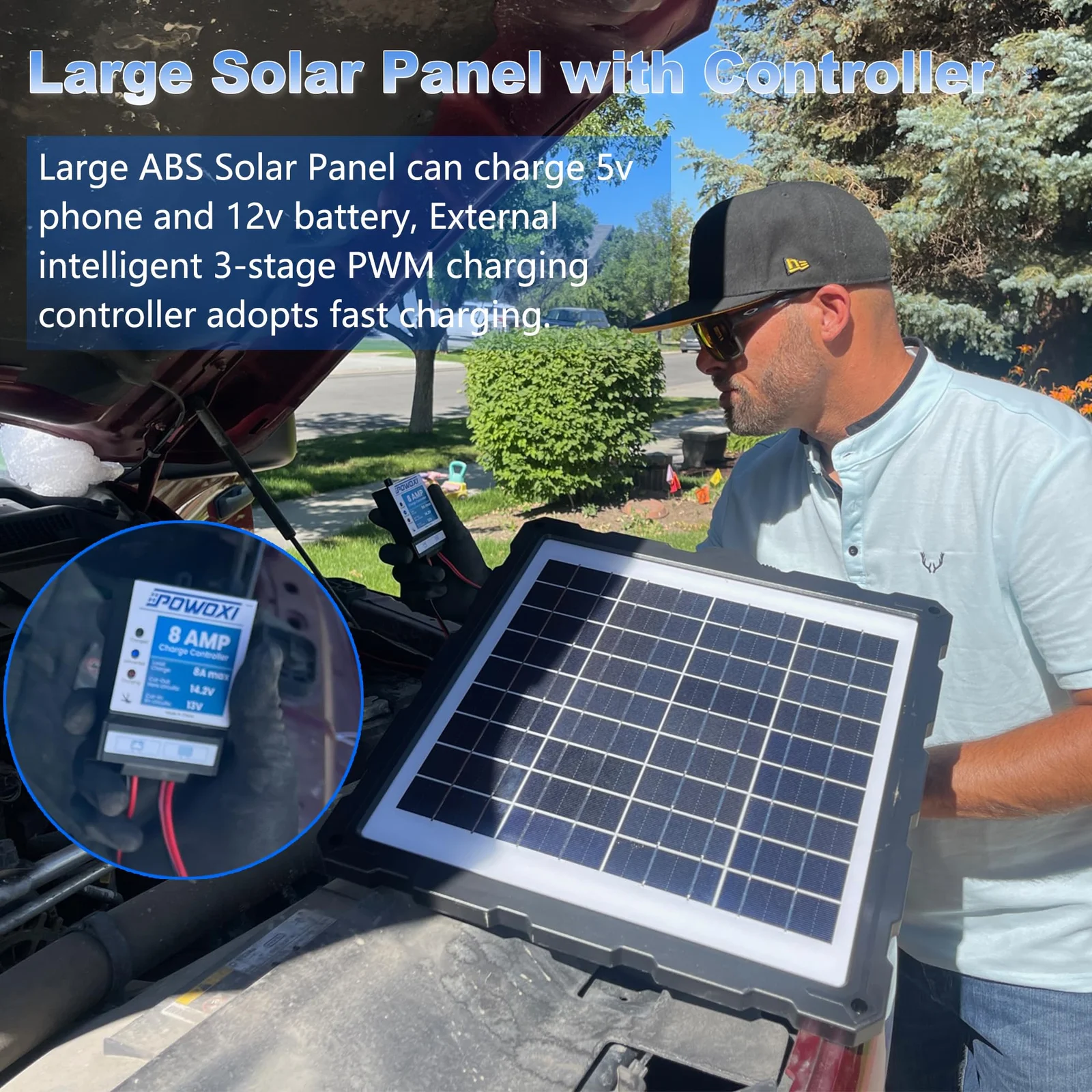

Charging a 12V Battery with a Solar Panel – Complete Guide
A 12V battery is widely used in cars, RVs, boats, and solar power systems.
Charging it with a solar panel is an eco-friendly and cost-effective option.
This guide covers how it works, what tools you need, and the safest way to do it.
How Solar Panels Charge a 12V Battery
Solar panels convert sunlight into electricity.
A 12V panel produces DC power that can be stored directly in a 12V battery.
However, connecting a panel directly to the battery can damage it over time.
That’s why most systems include a solar charge controller.
It regulates voltage and current, allowing the battery to charge efficiently without overcharging.
A fully charged 12V lead-acid battery typically reads about 12.6–12.8V when fully charged, and the controller ensures the voltage stays within this safe range.
Role of the Solar Charge Controller
The charge controller acts as a gatekeeper.
It prevents overcharging, deep discharging, and voltage spikes.
MPPT controllers are more efficient than PWM types, especially in low-light conditions.
Always match your controller to the solar panel’s wattage and battery type.
Choosing the Right Solar Panel Wattage
Panel size determines charging speed.
For occasional use, a 50–100W panel works well.
For faster charging, go with 150W or higher.
Match panel output voltage to the battery system—usually 18V open circuit for charging a 12V battery.
Step-by-Step Process to Charge a 12V Battery
Charging a 12V battery with solar power is straightforward with the right setup.
Follow these steps for safe and efficient charging.
Tools and Materials Needed
- 12V solar panel
- Solar charge controller
- Battery cables with clamps or connectors
- Multimeter for testing voltage
- Safety gloves and glasses
Wiring and Connection Steps
- Place the solar panel in direct sunlight.
- Connect the solar panel to the charge controller.
- Connect the controller to the 12V battery.
- Check the voltage with a multimeter to confirm charging.
- Monitor until the battery reaches full charge.
Monitoring and Safety Tips
- Avoid connecting the panel directly to the battery without a controller.
- Keep connections clean and tight.
- Use fuses to prevent electrical faults.
- Charge in a well-ventilated area to avoid gas buildup in lead-acid batteries.
How Long Does It Take to Charge a 12V Battery with a Solar Panel?
Charging time depends on panel wattage, sunlight hours, and battery capacity.
For example, a 100W panel in full sun can provide about 5–6 amps, charging a 50Ah battery in roughly 8–10 hours.
Factors Affecting Charging Speed
- Panel wattage
- Battery size (Ah)
- Sunlight intensity and duration
- Efficiency of the charge controller
Example Charging Time Calculations
Formula: Charging Time ≈ Battery Capacity (Ah) ÷ Charging Current (A)
If you have a 100Ah battery and a panel producing 5A:
100 ÷ 5 = 20 hours of ideal sunlight needed.
Tips to Extend Battery Life During Solar Charging
Proper charging not only keeps your battery full but also extends its lifespan.
Avoiding Overcharging
Overcharging shortens battery life.
Always use a controller and monitor charge levels.
Set the cutoff voltage according to the battery type.
Proper Storage and Maintenance
- Keep battery terminals clean.
- Store in a cool, dry place when not in use.
- Recharge every few months to avoid deep discharge.
Common Mistakes to Avoid
- Skipping the charge controller
- Using an undersized panel for large batteries
- Charging in poor sunlight without adjusting expectations
- Ignoring battery maintenance
Final Thoughts
Charging a 12V battery with a solar panel is simple, safe, and efficient when done correctly.
With the right panel, controller, and care, your battery can stay charged for years with free solar power.
